• DOSA Compliant Digital Quarter-Brick with PMBus interface
• 36-75Vin range, delivers up to 700W(28Vo, 25A)
• High efficiency, typ. 96% at 48Vin, half load
• Configuration and monitoring via PMBus™
• Baseplate included for improved thermal performance.
• Industry standard half brick
• Output short-circuit, output over voltage, & over temperature protection
• 2250Vdc isolation voltage, compliant with
IEEE802.3 PoE standards.
• MTBF TBD hours
• Remote control & power good
• Output short-circuit, output over voltage, & over temperature protection
• Designed to meet UL/IEC62368-1

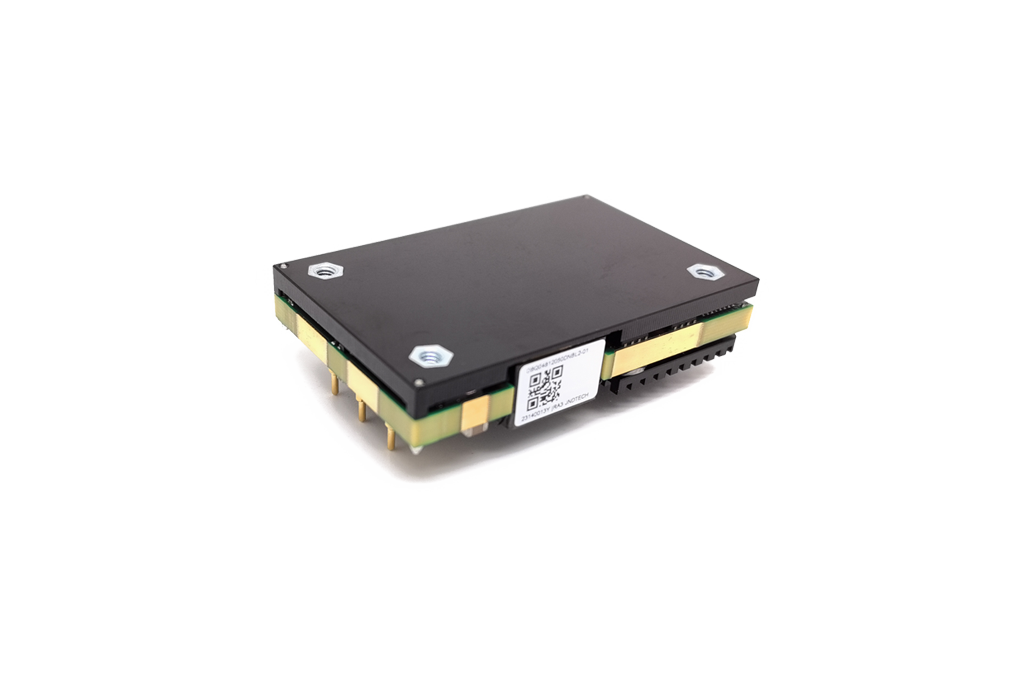

• DOSA Compliant Digital Quarter-Brick with PMBus interface
• 45-60Vin range, delivers up to 800W(10.8Vo, 74A)
• High efficiency, typ. 97% at 54Vin, full load
• Configuration and monitoring via PMBus™
• Optional Droop load sharing of two or more modules
• Baseplate included for improved thermal per- formance
• 2250Vdc isolation voltage, compliant with IEEE802.3 PoE standards
• MTBF 3.5M hours
• Three pin/function configurations available: Full PMBus
No PMBus
5Pin Bus converter, No Sense &Trim Pins
• Remote control & power good
• Output short-circuit, output over voltage, & over temperature protection
• Designed to meet UL/IEC62368-1

• DOSA Compliant Digital Quarter-Brick with PMBus interface
• 40-60Vin range, delivers up to 800W(12Vo, 68A)
• High efficiency, typ. 96.8% at 54Vin, full load
• Configuration and monitoring via PMBus™
• Optional Droop load sharing of two or more modules
• Baseplate included for improved thermal performance
• 2250Vdc isolation voltage, compliant with IEEE802.3 PoE standards
• MTBF 3.5M hours
• Three pin/function configurations available: Full PMBus
No PMBus
5Pin Bus converter, No Sense &Trim Pins
• Remote control & power good
• Output short-circuit, output over voltage, & over temperature protection
• Designed to meet UL/IEC62368-1

• DOSA Compliant Digital Quarter-Brick with PMBus interface
• 36-75Vin range, delivers up to 600W(12Vo, 50A)
• High efficiency, typ. 96% at 48Vin, full load
• Configuration and monitoring via PMBus™
• Optional Droop load sharing of two or more modules.
• Baseplate included for improved thermal performance
• 2250Vdc isolation voltage, compliant with IEEE802.3 PoE standards.
• MTBF 3.26M hours
• Three pin/function configurations available: Full PMBus with Sense &Trim Pins
No PMBus with Sense &Trim Pins
5Pin Bus converter, No Sense &Trim Pins
• Remote control & power good
• Output short-circuit, output over voltage, & over temperature protection
• Designed to meet UL/IEC62368-1

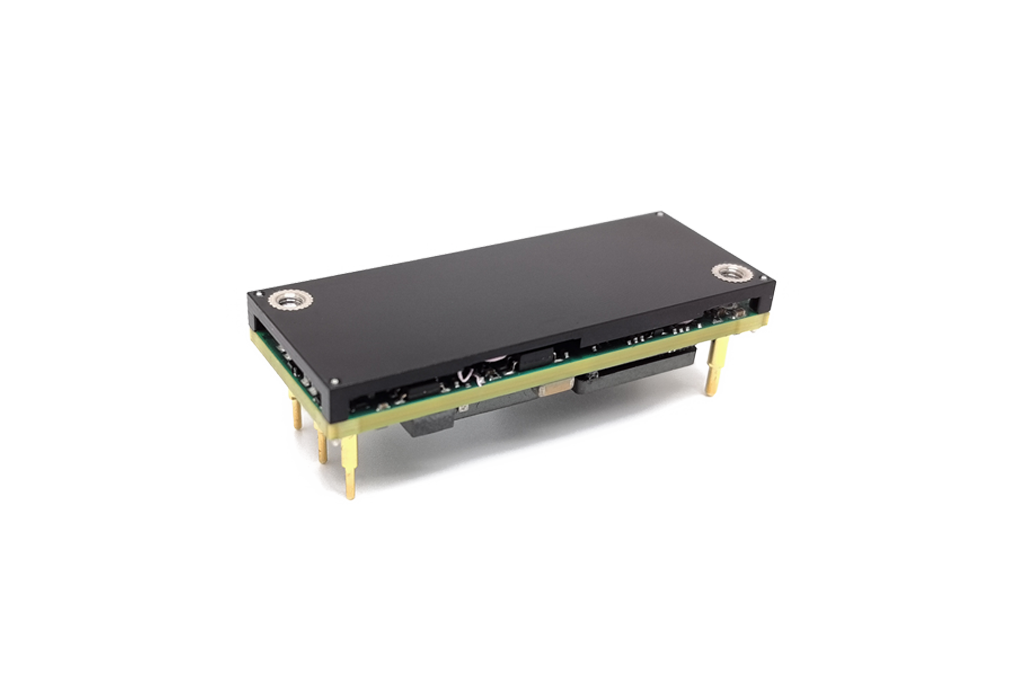

• DOSA Compliant Digital Eighth-Brick with PMBus interface
• 36-75Vin range, delivers up to 400W(12Vo, 33A)
• High efficiency, typ. 95% at 48Vin, full load
• Configuration and monitoring via PMBus™
• Optional Droop load sharing of two or more modules.
• Baseplate included for improved thermal performance
• 2250Vdc isolation voltage, compliant with IEEE802.3 PoE standards.
• MTBF TBD Mhours
• Three pin/function configurations available:
• Full PMBus with Sense & Trim Pins
• No PMBus with Sense & Trim Pins
• 5 Pin Bus converter, No Sense & Trim Pins
• Remote control & power good
• Output short-circuit, output over voltage, & over temperature protection

• DOSA Compliant Eighth-Brick
• 36-75Vin range, delivers up to 240W(12Vo, 20A)
• High efficiency, typ. 95.1% at 48Vin, full load
• 2250Vdc isolation voltage, compliant with IEEE802.3 PoE standards.
• MTBF 4.9 Mhours
• Two pin configurations available:
• 8 Pin Bus converter, with Sense & Trim Pins
• 5 Pin Bus converter, No Sense & Trim Pins
• Output short-circuit, output over voltage, & over temperature protection
• Designed to meet UL/IEC62368-1
